HALEY UNITS
LVDT probe interface box provides maximum flexibility to the system integrators so as to combine varying probes, scales and sensors in to a single system and get digital data through single interface. The device directly gives scaled measurement values in millimeters up to the selected resolution.This reduces the external interface components and system integrators can focus on single device for achieving the best results. This system comes with digital input which can be used to control SPM cycle from host.Another advantage added to system is that multiple such units can be cascaded in chained manner where more number of probes are used. No configuration in such cases. The device automatically detects and send data to host, even any Hybrid combination is allowed i.e. inductive probe interface unit can be cascaded with air gauging unit or counter unit.
HALEY 4440R

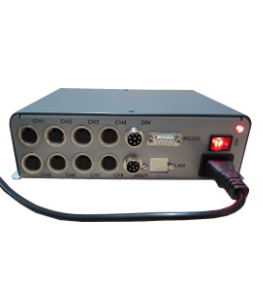

HALEY 8440R

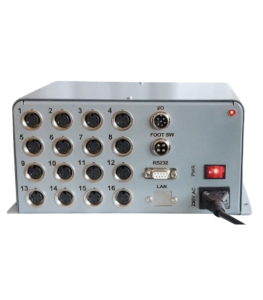

HALEY 16440R

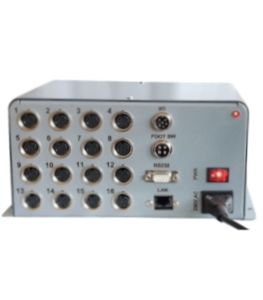

HALEY 16440E

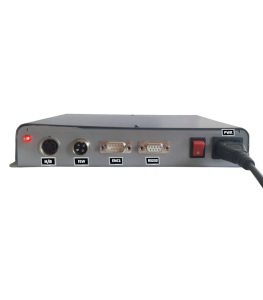

HALEY 1441R

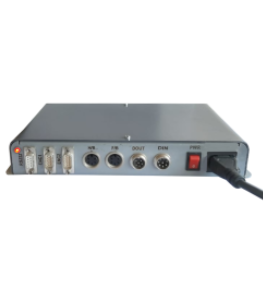

HALEY 2442R
Products Models
| SR NO. | Product model No. | Description | |
|---|---|---|---|
| 1 | HALEY 4440R | Four channel (Full or half bridge),RS232 output gauge port. | Add suffix D to the model number for dynamic gauge port application. |
| 2 | HALEY 4440E | Four channel (Full or half bridge),Ethernet output gauge port. | |
| 3 | HALEY 8440R | Eight channel (full or half bridge) ,RS232 output gauge port. | |
| 4 | HALEY 8440E | Eight channel (full or half bridge) gauge port ,Ethernet output gauge port. | |
| 5 | HALEY 16440R | Sixteen channel (full or half bridge), RS232 output gauge port. | |
| 6 | HALEY 16440E | Sixteen channel (full or half bridge),Ethernet output gauge port. | |
| 7 | HALEY 1441R | One half bridge and One encoder channel, RS232 output gauge port. | |
| 8 | HALEY 2442R | One full bridge, One half bridge and Two encoder channel, RS232 output gauge port. |
Feature:
- Probe type: Full bridge or half bridge inductive probe (TESA / PETER HIRT / SOLARTRON / DONG-DO / BAKER make half/full bridge LVDT probes).
- Data interface: Serial RS232, Ethernet (Factory option).
- Default baud rate for a system 19200 maximum 115200 Baud rate is supported.
- Communication protocols: ASCII continuous transmission.
- Configuration: Through serial interface using configuration software utility.
- High-speed phase synchronous amplifier with 16bit resolution.
- It’s possible to set scaled resolution using software utility.
- SMART-Cascade feature enables cascading of multiple such interface units for up to 48 channels. No configuration setting required. Device automatically detects cascading.
- Pre-calibrated with 0.1micron least count and 0.3micron repeatability. Device can be re-calibrated on-site using calibration utility software.
- Library for .NET available for quick start application software development. Also, explore our PrimeLineTM software for immediate deployment to multi-gauging systems.
- Provision for two footswitch inputs, four isolated digital inputs and four isolated digital outputs.
- Powered from universal input SMPS enables the unit to operate from 110VAC to 265VAC 50/60Hz.
- The dynamic interface box is used for dynamic applications.
salient features:
- MS enclosure for light weight and smooth finish. Gives excellent shielding from electro-magnetic noise.
- Non heating and all SMD electronics makes the device durable and noise free.
- Very rugged RS232 interface with 1500V optical isolation for continuous operation.
- ESD IEC61000-2 / IEC61000-4 / IEC61000-5 Protected serial port ensured reliable operation in industrial noisy environment.
- Internal double watchdog makes the device always available even in 24x7 operation condition.

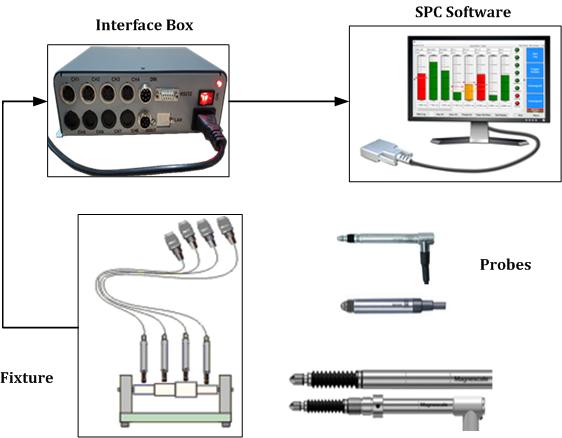

Application diagram

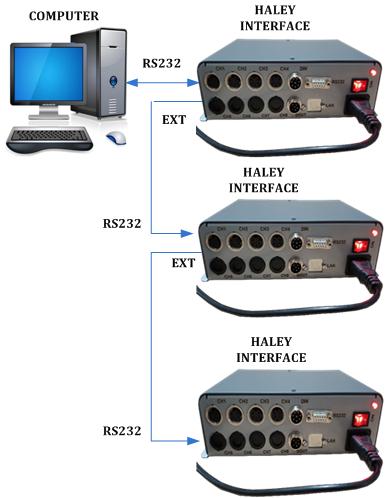

The cascade of multiple interface units.
