SPADE SERIES

SPADE units are the newest series of display units from MICRONBEATS METROLOGY SOLUTION. The series covers a range of display units that can deliver excellent and precise performance. The display units available are Progauge display units, Super display units, Rainbow display units and Column display units.

Spade Rainbow

Rainbow devices provide 7" and 10" TFT displays with SPC features. These are mainly 2/4/8/10/12 input channel TFT display devices.Avaliable in inductive probe and air input channel options. Below are some of the features.

Feature:

  • 7” or 10” Color TFT display for clear viewing and graphical presentations.
  • Standard HDMI monitor.
  • Dual Interface Touch + keyboard and mouse operation.
  • 3 built-in relays for fixture result(ACCEPT / REWORK / REJECT).
  • Rainbow unit ensures a friendly interface with clear layout and user-friendly messages, making operation easy for all users.
  • Low Air Pressure Alert*: Rainbow unit includes a low air pressure alert feature, ensuring users are promptly notified if the air pressure falls below a specified threshold. This proactive warning helps to prevent issues related to insufficient air pressure during the monitoring process.
  • Safe shut down*: Protects the device in case of a power outage by automatically shutting down the device.
  • The air is automatically cut off after selecting the setting.
  • SPC Features: Min, Max, Range, Avg, Cp, Cpk, Pp, PPk, Std Deviation, Mean etc.
  • Easy Report Generation: Rainbow unit simplifies the process of creating reports through its user-friendly interface. Users can effortlessly generate comprehensive reports in CSV format for data manipulation for easy sharing and viewing.

Spade Super

The SUPER series covers two channel and four result, four channel and four result tricolour display units, suitable for gauging applications. A display unit that can deliver excellent and precise performance. The bright tricolour digits and large font on the LCD. The tri-colour digit changes colour between green, red and yellow depending on the component status- 0K, REJECT or REWORK. Below are some of the features

Feature:

  • 0.56” Tricolor digit display.
  • 16X2 Big font alphanumeric LCD display for settings and configuration.
  • Up to 21500 records internal storage with timestamp and program number for four channel units.
  • Metric/Inch measurement unit.
  • Built-in real time clock.Low battery warning feature for timely replacement of battery.
  • Accept/Reject/Rework output relay.
  • Built-in air saver feature(Factory option).
  • Auto correction(Factory option).
  • Rejection BIN interlock feature (Factory option).
  • Up to 16 manually selectable program settings.

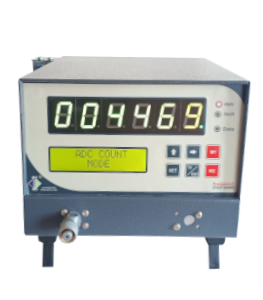

Spade progauge

The ProGAUGE series covers one channel and one result and one channel and two result tricolor display unit, suitable for gauging applications. The tri-color digit changes color between green, red and yellow depending on the component status- ACCEPT, REJECT or REWORK.Below are some of the features

Feature:

  • 1"/0.56” Tricolor digit display.
  • 16X2 Big font alphanumeric LCD display for settings and configuration.
  • Up to 10500 records internal storage with timestamp and program number for four channel units.
  • Metric/Inch measurement unit.
  • Built-in real time clock.Low battery warning feature for timely replacement of battery.
  • Accept/Reject/Rework output relay.
  • Built-in air saver feature(Factory option).
  • Auto correction(Factory option).
  • Up to 16 manually selectable program settings.
  • Rejection BIN interlock feature (Factory option).

Eiffel display unit

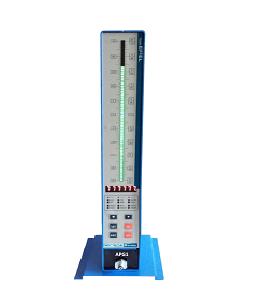

Eiffel AR11V0

The Tri-color bar graph along with the 6 digit 7 segment display is an easy tool for the operate to improve productivity. The user can set it for measurements in comparative mode. The tri-color bar changes color between green, red and yellow depending on the component status- 0K, REJECT or REWORK. The tolerance values are superimposed on the bar for operator's assistance. Advanced microcontroller based hardware along with a very simple to understand menu makes it very user friendly.

Feature:

  • Red digits 0.36”.
  • 2.8" TFT color display.
  • Up to 10500 records can be stored internally with timestamps and programs and a second option up to 5 lakh records can be stored with SPC.
  • Metric/Inch measurement unit.
  • Static /Dynamic reading.
  • The tri-color bar changes color between green, red and yellow depending on the component status- Accept /Reject /Rework.
  • Bar graph ranges from 10,25, 100, 250 and 500.
  • Built-in real time clock. Low battery warning feature for timely replacement of battery.
  • Built-in air saver feature (Factory option).
  • Auto correction (Factory option).
