UM_Primeline_SPCPRIMELINE MULTIGAUGING SPC SOFTWARE
The PrimeLineTM is a multigauging SPC software solution for gauging applications. The software supports unlimited product models to be configured and has all the parameter settings required for dimensional gauging.The PrimeLine solution consists of main software, Gauge Port device. The gauge port provides measurement values to the PrimeLine software. PrimeLine software sends and receives data to PLC.
In addition to basic measurement features, the software has very elaborative reporting with SPC. Offline and online SPC helps user keep track of production, rejection while using the system. All the reports can be directly exported to desired file format with number of filtering options. Instructions are also displayed at the bottom of each screen to guide the operator. These two features make the software very easy to use. User-friendly screens with color graphics or digital pictures display icons for simple menu selection.

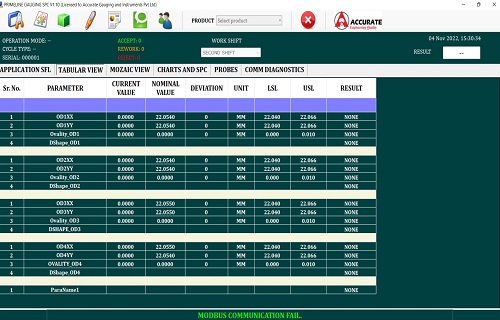

TabularView
Mozaic View.

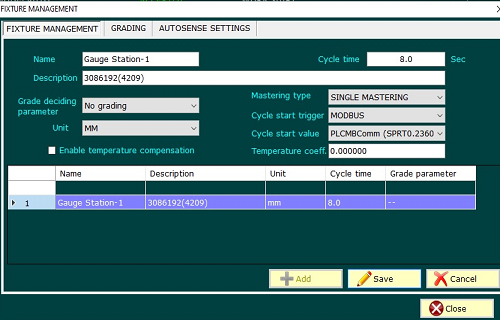

Fixture Management

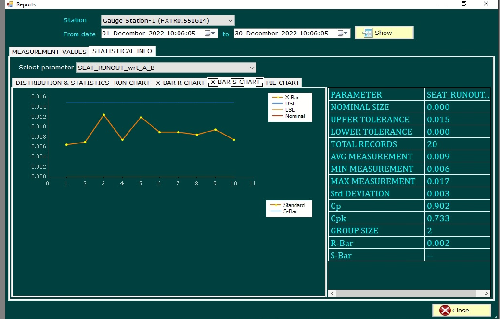

Report Xbar S chart

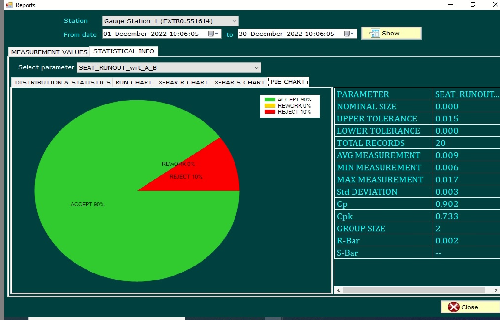

Report Pie Chart

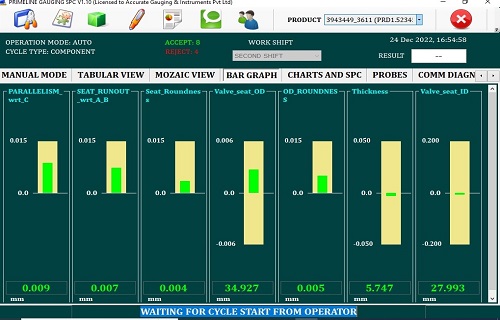

Bar Graph
Feature:
- PrimeLineTM ensures a friendly interface with clear layout, user-friendly messages and making operation easy for all users.
- Up to 10GB of measurement data can be stored in database of PrimeLineTM.
- Robust Data Backup Policy: PrimeLine implements a robust data backup policy with regular intervals, including daily, weekly, monthly, and yearly selectable options. This ensures that users' data is consistently and securely stored, providing peace of mind and data reliability.
- Easy Report Generation: PrimeLine simplifies the process of creating reports through its user-friendly interface. Users can effortlessly generate comprehensive reports in both CSV and PDF formats, ensuring flexibility in data analysis and convenient sharing. This feature allows users to export reports in their preferred format (.csv for data manipulation and .pdf for easy sharing and viewing).
- PrimeLineTM features collectively contribute to an efficient and streamlined monitoring process, optimizing workflows and maximizing data accuracy from product selection to parameter monitoring.
- Serial number reset on a daily, weekly, or monthly basis, or at a preset batch count.
- Setable Shift timings.
- Absolute/relative mode of display for measured dimension.
- The measure external/internal diameter.
- SPC Charts-X-Bar R-Chart, X-Bar S-Chart, Pie-chart, Run-chart.
- Grading option.
- Gauge configuration utility.
- Password Protection.
- Real-time data plotting.
- This product supports inductive type of gauges and binary gauge input in addition to air gauges, if suitable GaugePort device is used.

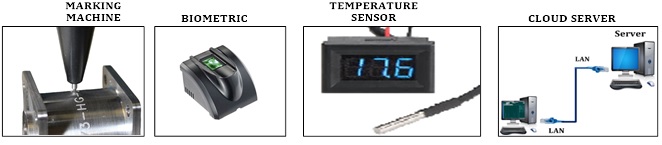

- his product supports temperature sensor, biometric, barcode printer, pin marking machine or laser marking machine to directly mark the tested component.
- Protects the computer in case of a power outage by automatically shutting down the system after preset timeout. (Requires PowerMonTM device and a UPS to be connected separately).
- Software can help optimize production processes,reducing lead times.

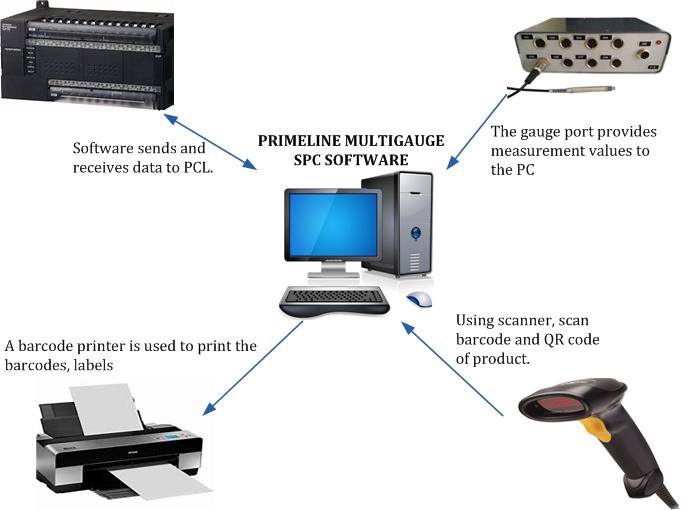

Many peripherals can be connected to PrimeLine SPC software.
