PROGAUGE DISPLAY UNITS
The ProGAUGE series covers one channel and one result and one channel and two result tricolor display unit,suitable for gauging applications. A display unit that can deliver excellent and precise performance. The bright tricolor digits and large font on the LCD. The tri-color digit changes color between green, red and yellow depending on the component status- ACCEPT, REJECT or REWORK. Virtually maintenance free, these devices have been in use over many years in industry delivering excellent measurement performance in varying industrial environments. The display unit can be used for various measuring fixtures such as bores, shaft diameter,cylindrical work piece, ovality, and roundness.
ProGauge AR11V0

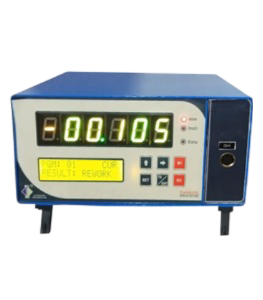

ProGauge PR11V0

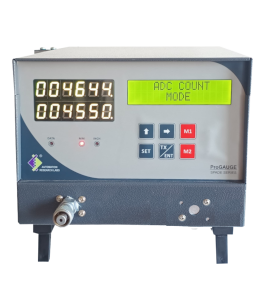

ProGauge AR12V0

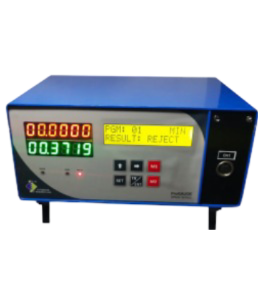

ProGauge PR12V0

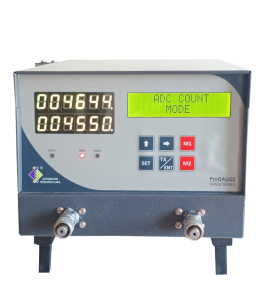

ProGauge AR22V0

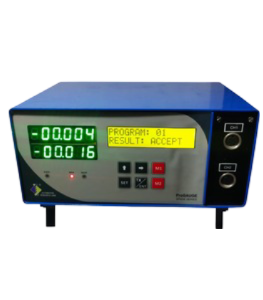

ProGauge PR22V0
Products Models
| SR NO. | Product model No. | Description |
|---|---|---|
| 1 | AR11V0/PR11V0 | Single Air input, Single result 1"/ Single Probe input, Single result 1" tricolor display unit |
| 2 | AR12V0/PR12V0 | Single Air input, Two result 0.56"/ Single Probe input, Two result 0.56" tricolor display unit |
| 3 | AR22V0/PR22V0 | Two Air input, Two result 0.56"/Two Probe input, Two result 0.56" tricolor display unit |
USER MANUAL:
| SR NO. | Unit | Firmware Version |
|---|---|---|
| 1 | AR11V0/PR11V0 |
 V1.30
|
| 2 | AR12V0/PR12V0 |
V5.10
|
| 3 | AR22V0/PR22V0 |
V1.20,V1.20A,
V1.21,V2.20
V2.10
|
Feature:
- 1”/0.56" Tricolor digit display for showing measured value.
- 16X2 Big font alphanumeric LCD display for settings and configuration.
- 10500 records internal storage capacity
- Measurement unit can be mm or Inch
- built-in real time clock.Low battery warning feature for timely replacement of battery.
- Accept /Reject /Rework output relay
- Built-in air saver feature(This feature can be enabled or disabled according to the requirement).
- Auto correction(This feature can be enabled or disabled according to the requirement).
- Rejection BIN interlock feature(This feature can be enabled or disabled according to the requirement).
- Up to 16 manually selectable program.
- 0.1μm,0.2μm,0.5μm,1μm,2μm,5μm,10μm Least count options.
- Absolute/relative measurement.
- Ethernet or RS232 for computer connectivity.
- AutoSave/ Auto Sense facility
- Additional RS232 serial port for auto-correction communication or connecting IO expansion board.

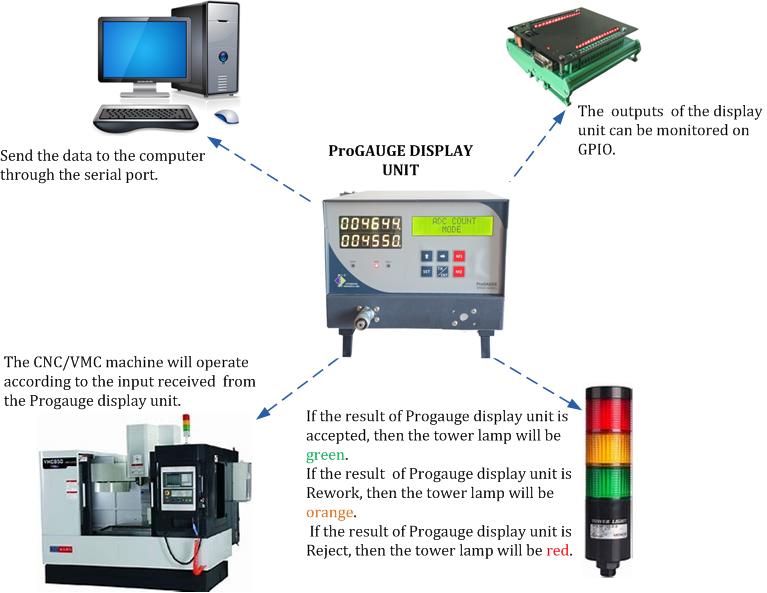

Many peripherals can be connected to a Spade proGauge display unit
