SUPER DISPLAY UNITS
The SUPER series covers two channel and four result, four channel and four result tricolour display units, suitable for gauging applications. A display unit that can deliver excellent and precise performance. The bright tricolour digits and large font on the LCD. The tri-colour digit changes colour between green, red and yellow depending on the component status- 0K, REJECT or REWORK. The 21500 has a capacity for internal storage. Virtually maintenance free, these devices have been in use over many years in industry delivering excellent measurement performance in varying industrial environments. The display unit can be used for various measuring fixtures such as bores, shaft diameter, cylindrical work piece, ovality, and roundness.
Super AR24V0
Super PR24V0
Super AR44V0
Super PR44V0
Products Models
| SR NO. | Unit | Description |
|---|---|---|
| 1 | AR24V0 | Two air input,Four result 0.56" tricolor display unit. |
| 2 | PR24V0 | Two probe input,Four result 0.56" tricolor display unit. |
| 3 | AR44V0 | Four air input,Four result 0.56" tricolor display unit. |
| 4 | PR44V0 | Four probe input,Four result 0.56" tricolor display unit. |
USER MANUAL:
V2.01
Feature:
- 0.56” Tricolor digit display for showing measured value.
- 16X2 Big font alphanumeric LCD display for settings and configuration.
- 21500 records internal storage capacity
- Metric/Inch measurement unit.
- Built-in real time clock.Low battery warning feature for timely replacement of battery
- Accept /Reject /Rework output relay
- Built-in air saver feature(This feature can be enabled or disabled according to the requirement).
- Auto correction(This feature can be enabled or disabled according to the requirement).
- Rejection BIN interlock feature(This feature can be enabled or disabled according to the requirement).
- Up to 16 manually selectable program settings.
- 0.1μm, 0.2μm, 0.5μm, 1μm, 2μm, 5μm, 10μm Least count options.
- Absolute/relative measurement.
- Ethernet or RS232 for computer connectivity.
- AutoSave/ Auto Sense facility.
- Additional RS232 serial port for auto-correction communication or connecting IO expansion board.

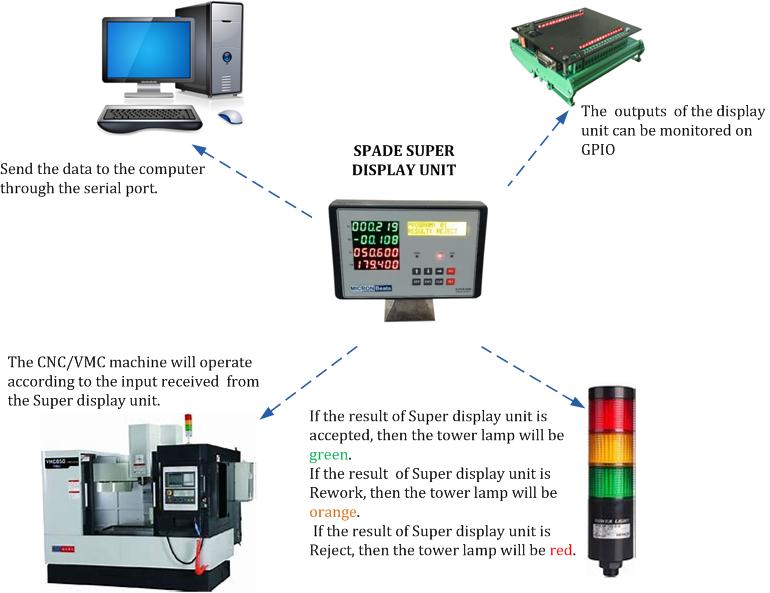

Many peripherals can be connected to a Spade proGauge display unit
